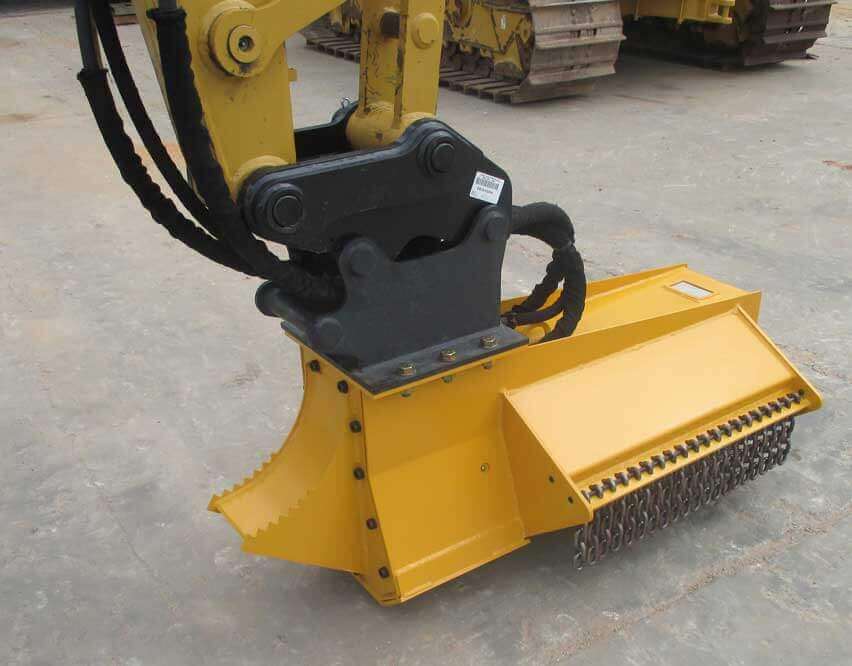

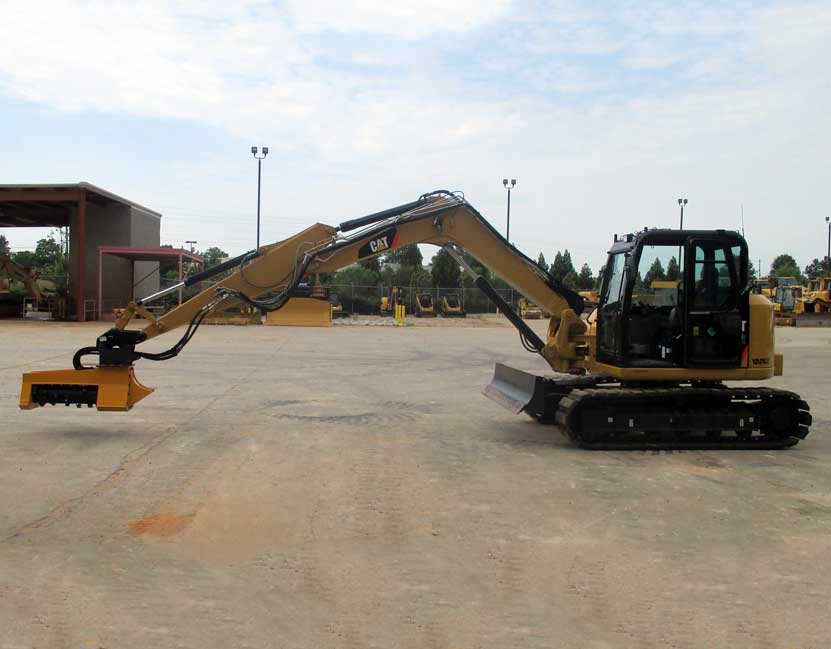

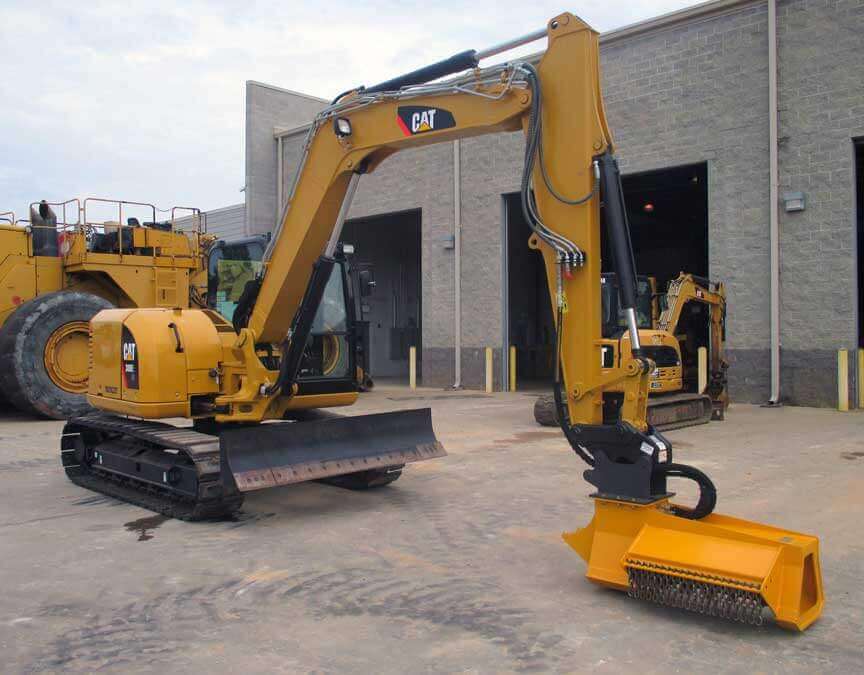

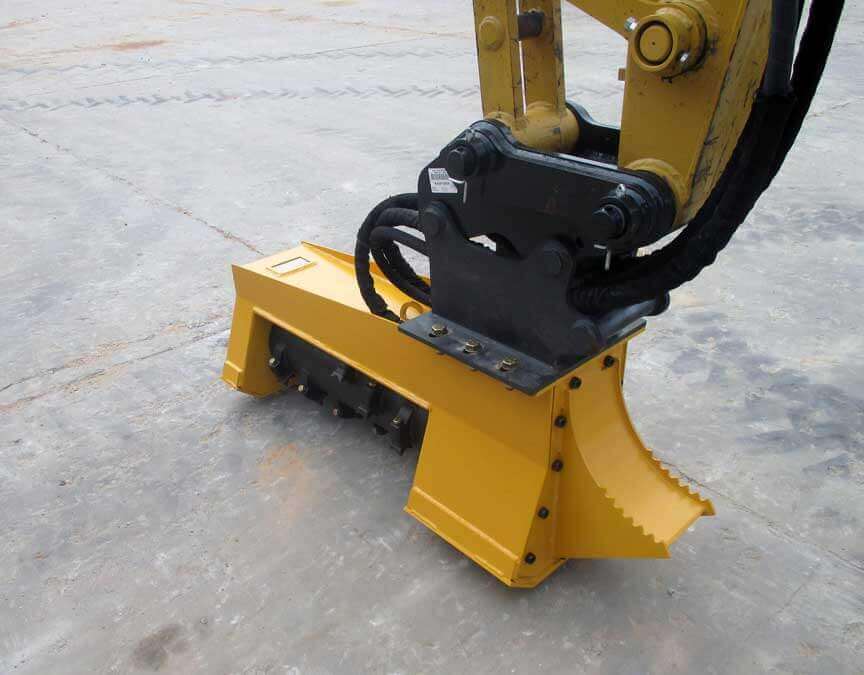

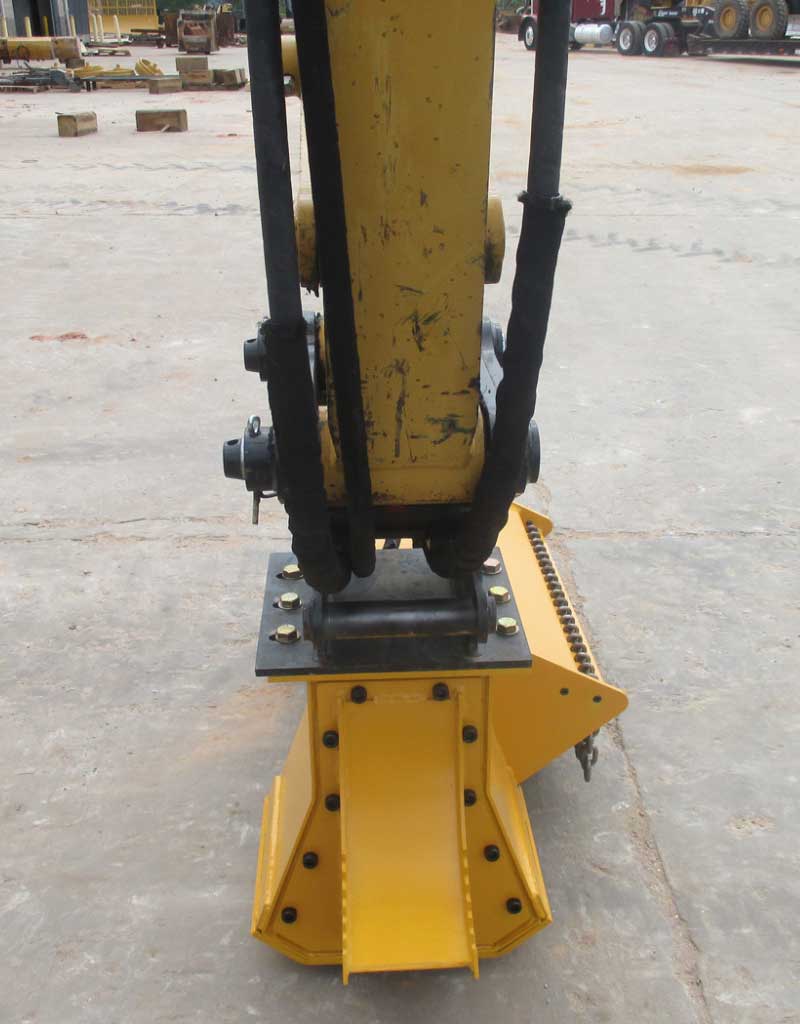

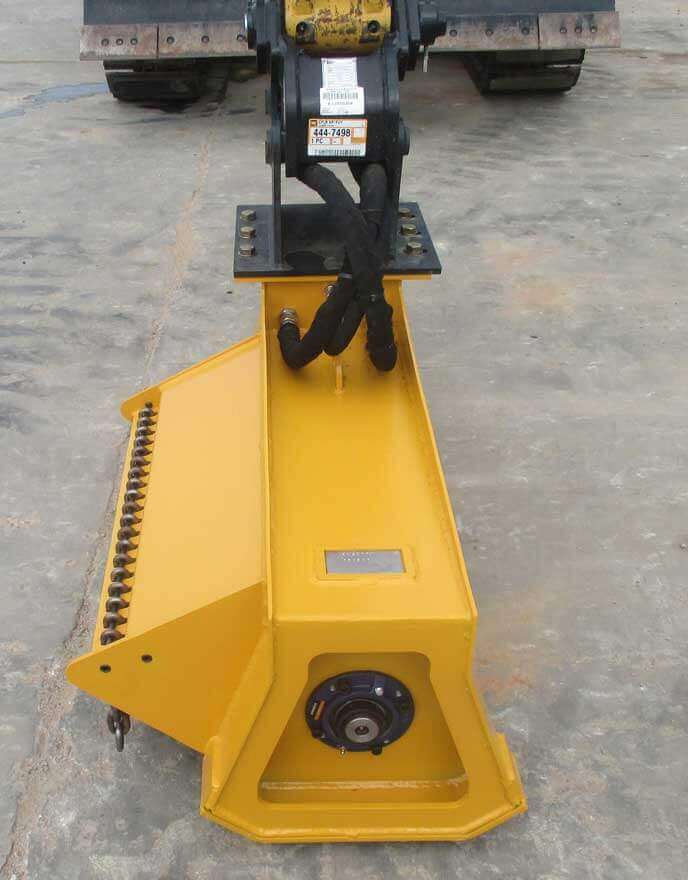

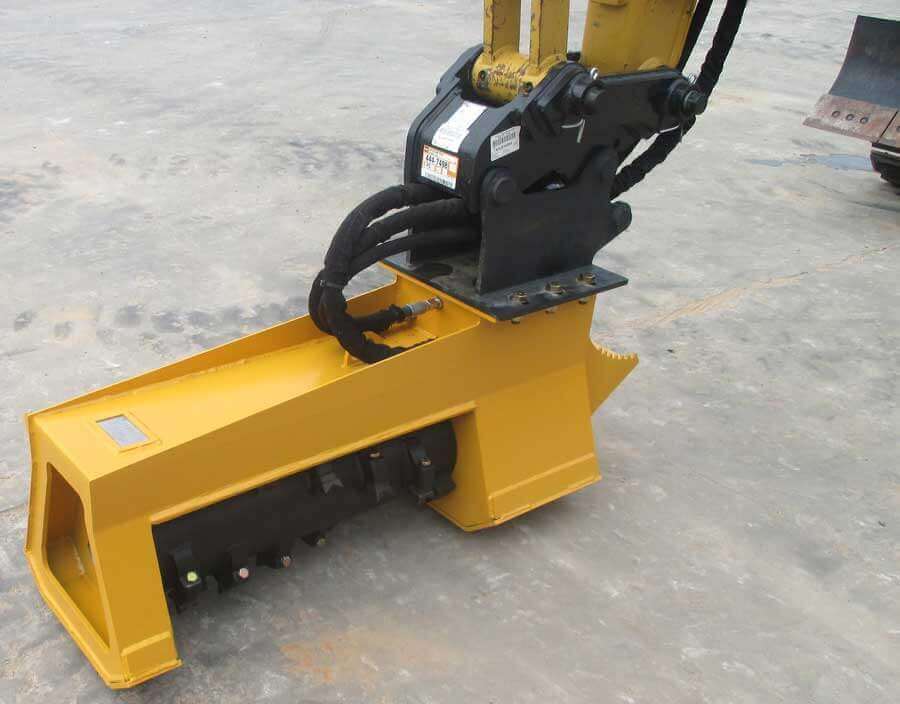

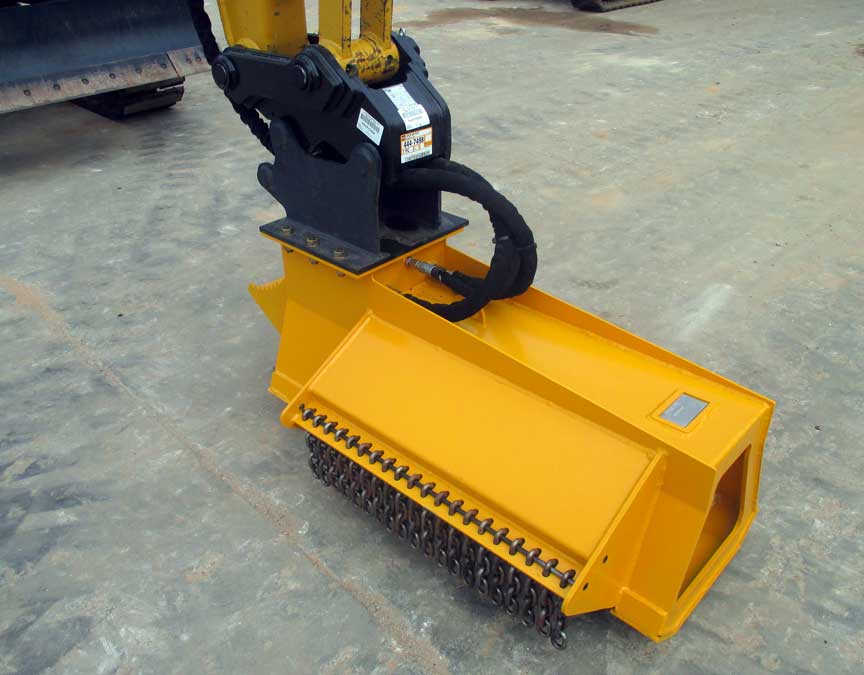

Torrent EX30 RPM
EX30 RPM Technical Specifications
- Operating weight - (Standard) 700 lb/313 Kg
- Cutting width - 30 inches
- Rotational speed - 3200 RPM (maximum)
- Excavator power requirement - 30 Hp or 22 Kw (minimum)
- Excavator weight range - 6 to 12 tonne
- Cutter type - fixed spherical or fixed beaver
- Cutter quantity - 18
- Drive type - direct
- Power transmission type - hydraulic fluid power
- Hydraulic motor type - fixed axial piston
- Maximum hydraulic system pressure - 5000 psi/345 bar (maximum continuous)
- Hydraulic oil flow requirement - 18 usgpm/68 lpm (minimum)
