Severe Duty Root Grapple

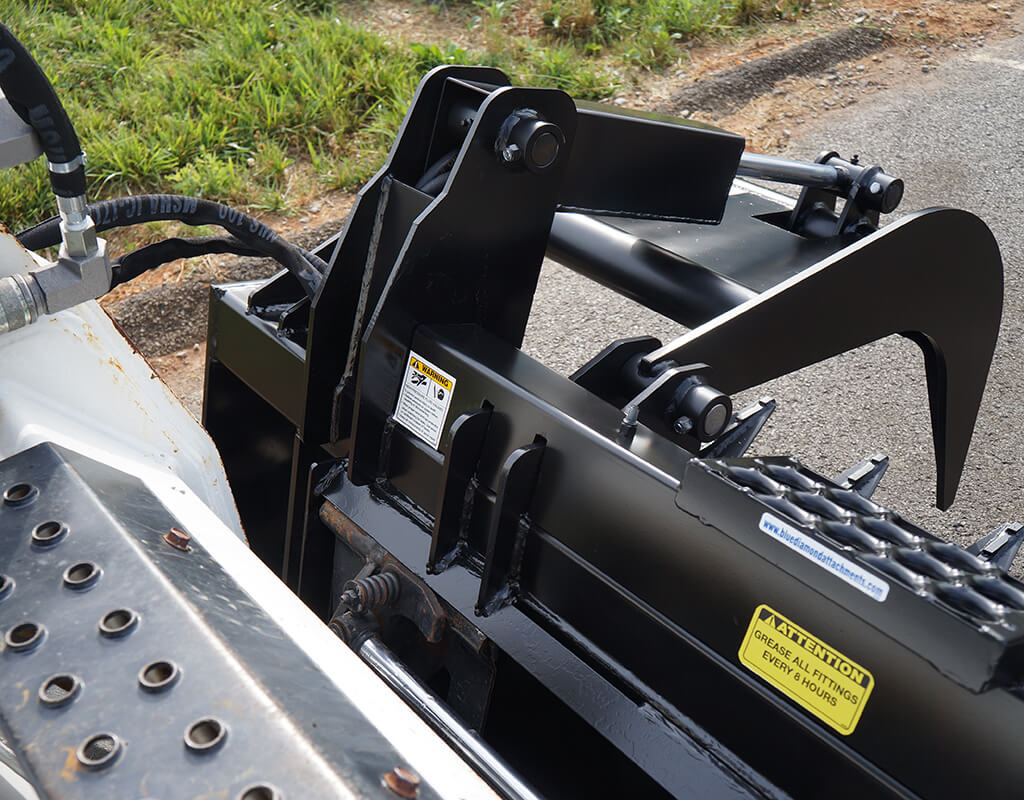

This awesome new addition to the Blue Diamond grapples offers some great new features suggested by their customers! The new hose routing keeps the hoses out of the pinch area by running them internally through the left cylinder tower. The quick attach area has been made solid to protect the cylinder and lines on the hydraulic quick attach that many newer machines offer. Extra tubing in the grapple clamps prevents twisting and the one piece tines bucket tines no longer have a seam in the back of the grapple. This new design has made a great grapple even better!!
- Half inch tines throughout

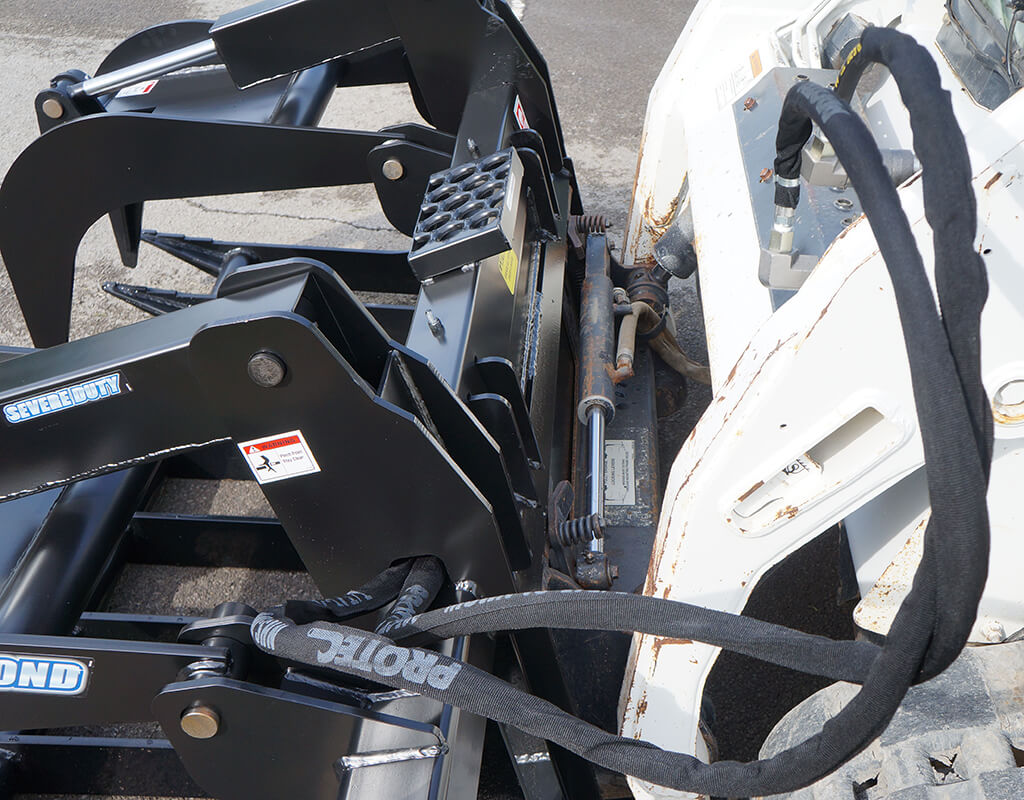

- New "no pinch" hose routing
- Available in 72", 78", and 84"
- 72" weighs 950 lbs.
- 78" weighs 970 lbs.
- 84" weighs 990 lbs.
- Opens to 39"
- 35" deep
- 8" tine spacing
- 1.25" pivot pins in bushings with grease fittings
- Extra strong one piece tines
